BOX oil cooling series
All UL certified accessories (can buy American property insurance
Delivery in USA (including strong and weak current assembly and testing)

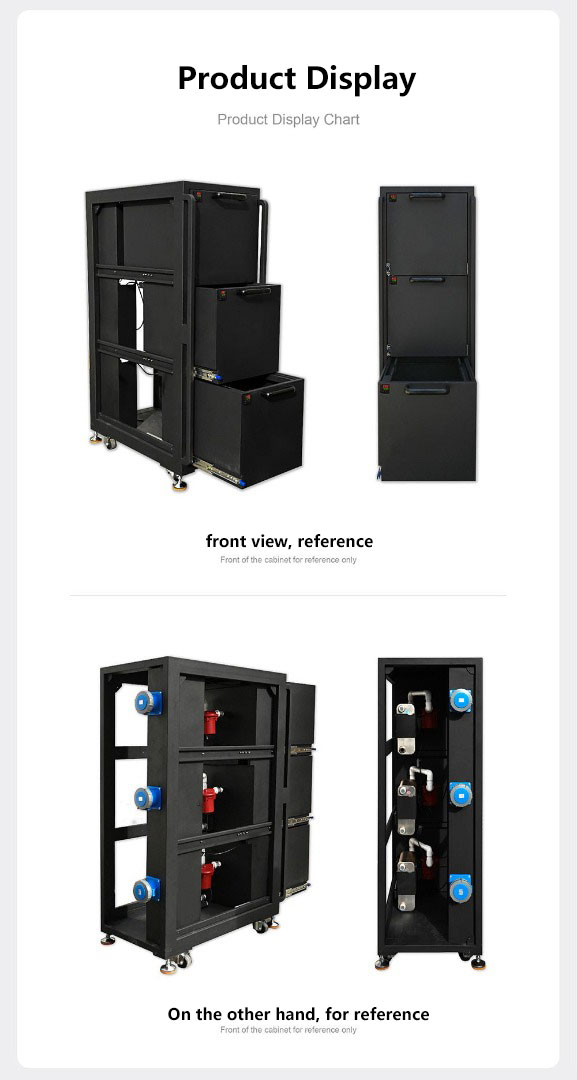

BOX oil cooling series real scene
Oil-cooled overclocking system
| S19PRO | |||
|---|---|---|---|
| Power consumption (W) | Frequency (M) | Voltage (V) | Hash rate (T) |
| 3800 | 575 | 12.8 | 121 |
| 4300 | 625 | 13.1 | 132 |
| 4800 | 675 | 13.4 | 141 |
| 5400 | 725 | 13.6 | 145 |
| 5800 | 750 | 13.9 | 153 |
| 6200 | 775 | 14.1 | 161 |
| S19 | |||
| Power consumption (W) | Frequency (M) | Voltage (V) | Hash rate (T) |
| 3350 | 750 | 14.1 | 105 |
| 3750 | 800 | 14.3 | 110 |
| 4260 | 850 | 14.6 | 120 |
| 4690 | 875 | 14.7 | 124 |
Advantages of oil-cooled overclocking systems

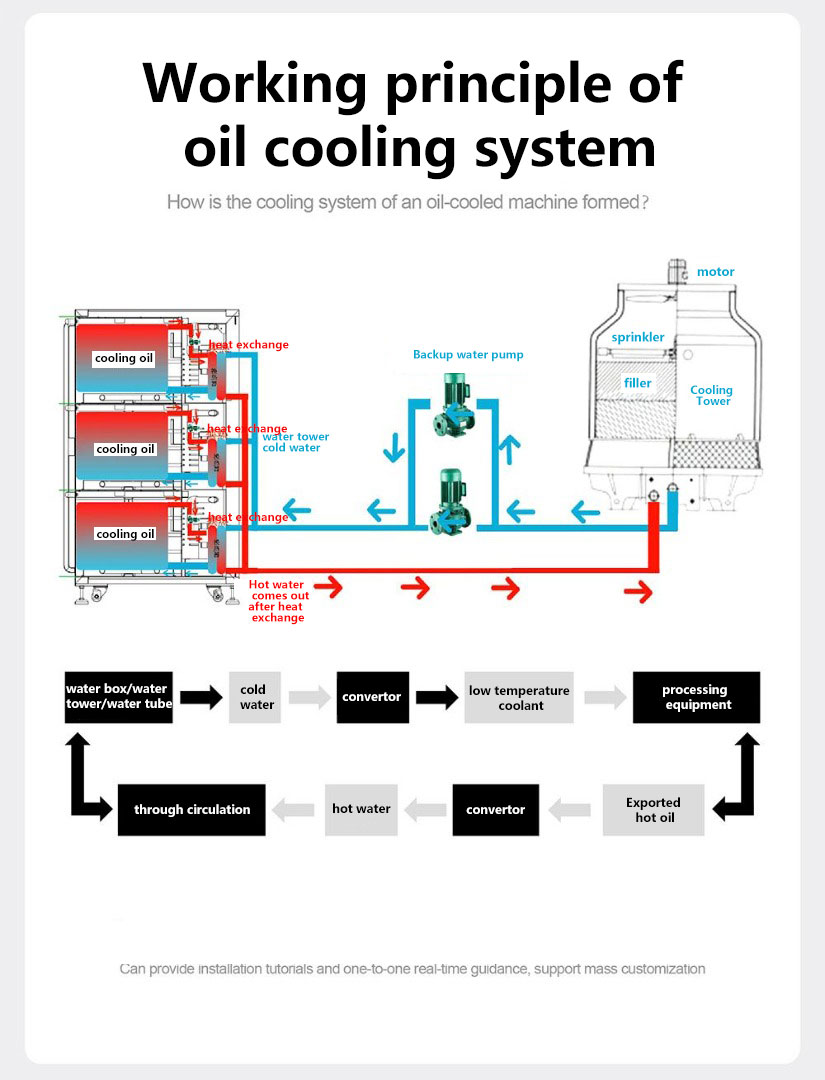

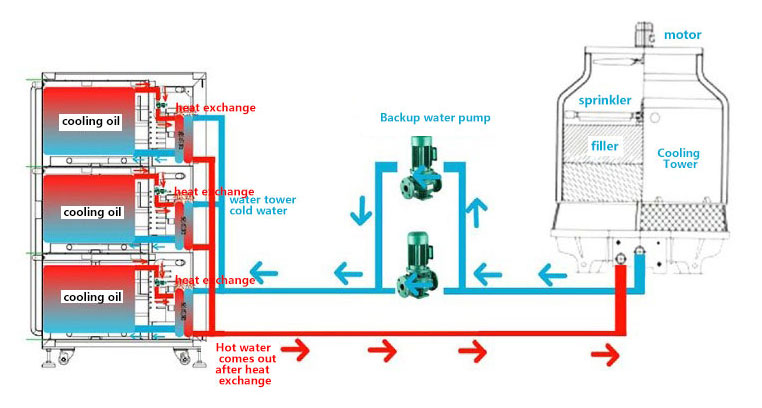

Oil-cooled mining machine cooling system

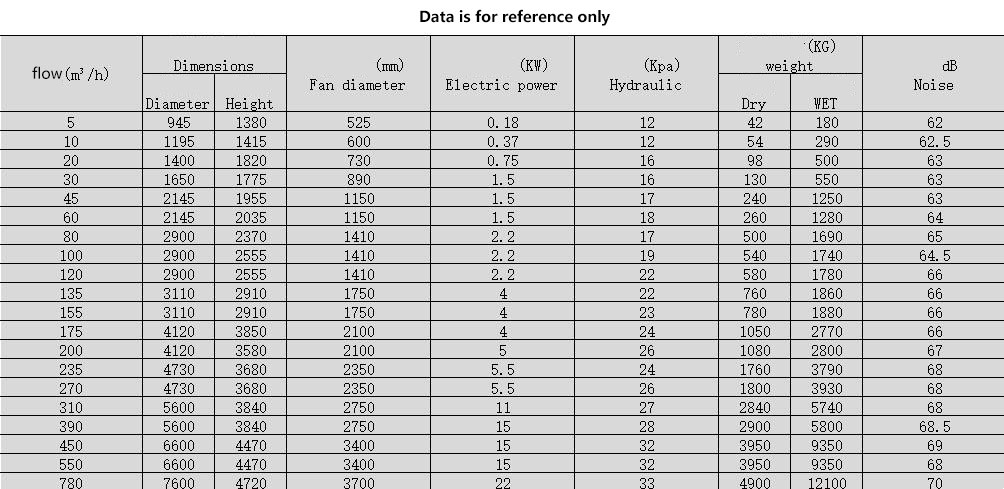

Cooling tower size selection (for reference only)
Calculation formula: 1KW power consumption≈0.23 tons of heat exchange (1 ton = 1m³)
Example: An S19 PRO is overclocked to a computing power of 165T, and the power consumption is 7KW; then it takes 0.23 tons*7KW≈1.6 tons of heat exchange to cool the machine; four-layer oil cooler (16-seat version) It takes (16 units*7KW)*0.23 tons≈26 tons of circulation to cool the four-layer cabinet
Oil-cooled overclocking system
Oil temperature control subsystem, automatically power off when the temperature is higher than the set temperature and power on automatically when the temperature is lower than the set temperature
The hot oil-cold water heat exchange subsystem ensures that the hot oil is cooled down into cooling oil
Miner power distribution and network connection subsystem, mining machine runs for a long time

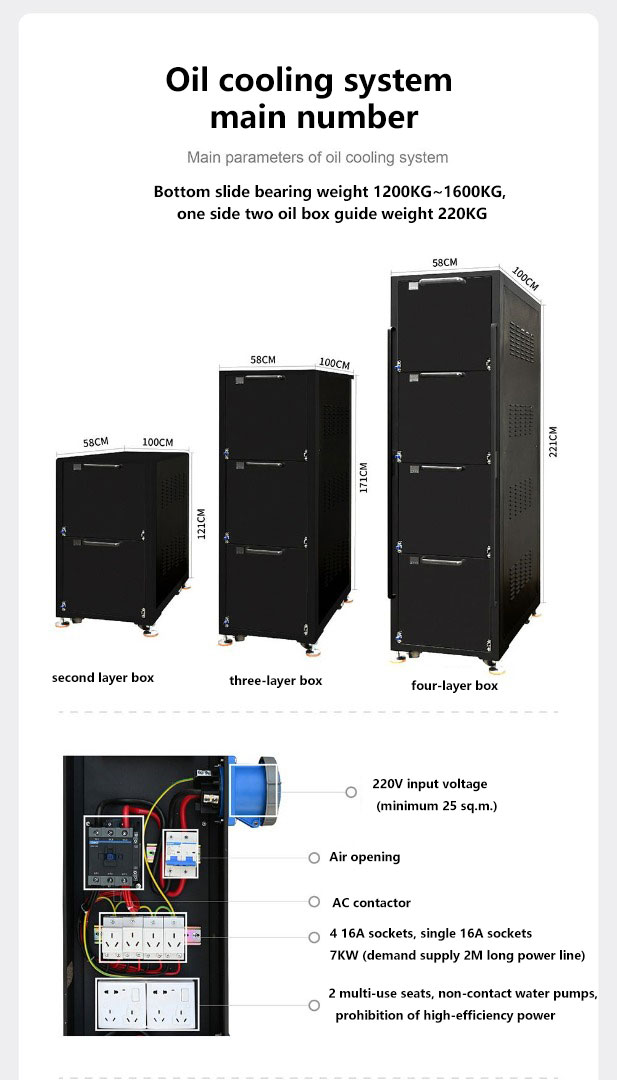

Main parameters of oil cooling overclocking system

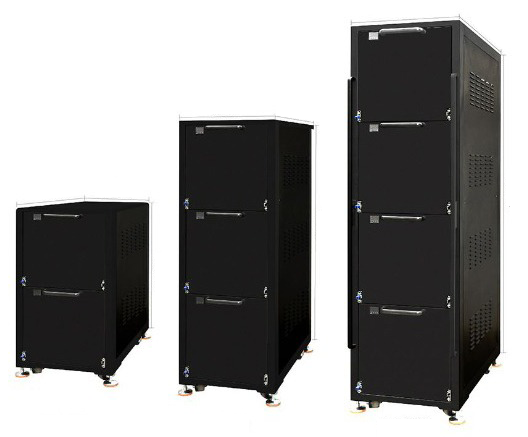

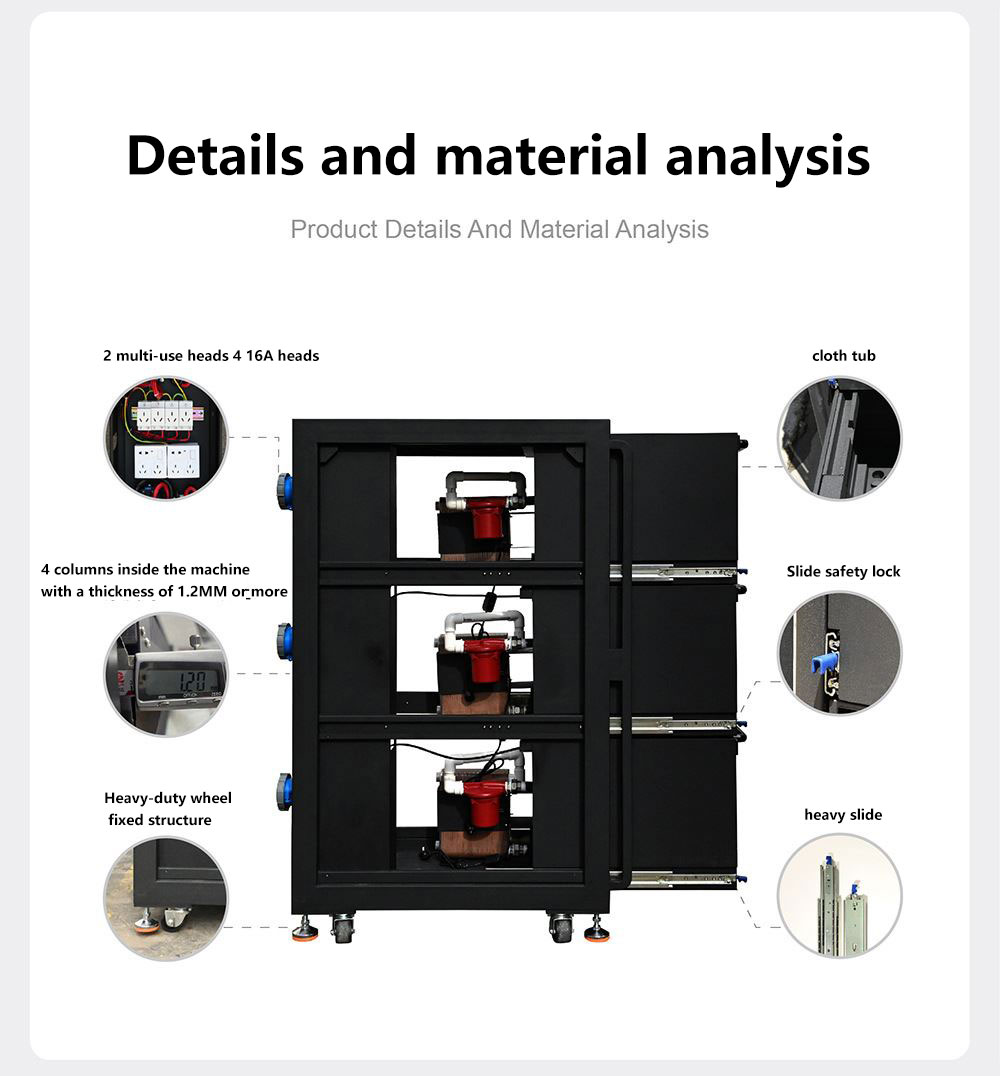

- Dimensions of the four-layer box: length 100CM*width 55CM*height 262CM (including bottom pulley, pulley≈11CM)
- Cabinet weight: 284KG Weight after accessories are installed (without oil)≈380KG
- Three-layer cabinet size: length 100CM*width 58CM*height 171CM
- Cabinet weight: 223KG Weight after accessories are installed (without oil)≈291KG
- The size of the second floor cabinet: length CM*width CM*height CM
- The weight of the box: the weight after the accessories are installed (without oil)≈KG The bottom pulley block can bear 1200KG~1600KG, and one pair of two fuel tank rails can bear 220KG

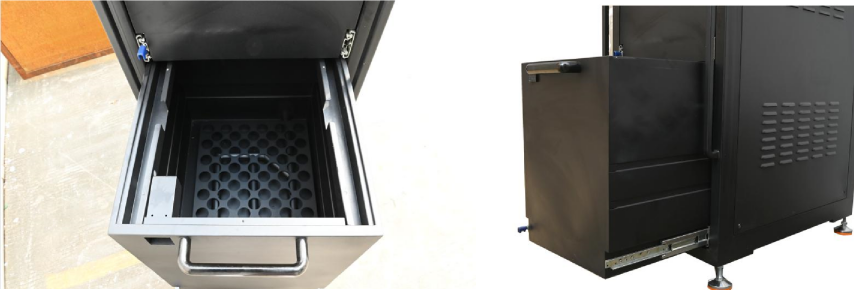

- Four-layer fuel tank; inner diameter of fuel tank: length 60CM*width 46CM*height 50CM; 4 sets of S19 PRO can be placed; 4 layers can be placed 4 layers*4 sets=16 sets of S19 PRO single-layer fuel requirement 60CM*46CM*40CM ≈120 liters (reserve 40 liters) ≈160 liters of oil; 4 layers of oil demand 4 layers * 120 liters ≈ 480 liters (spare 40 liters * 4 layers) ≈ 640 liters of oil
- Three layers of fuel tank; inner diameter of fuel tank: length 60CM*width 46CM*height 50CM; 4 units of S19 PRO can be placed; 3 layers can be placed 3 layers*4 units = 12 units of S19 PRO single layer fuel requirement 60CM*46CM*40CM ≈120 liters (reserve 40 liters) ≈160 liters of oil; 3 layers of oil demand 3 layers*120 liters≈360 liters (spare 40 liters*3 layers)≈480 liters of oil;

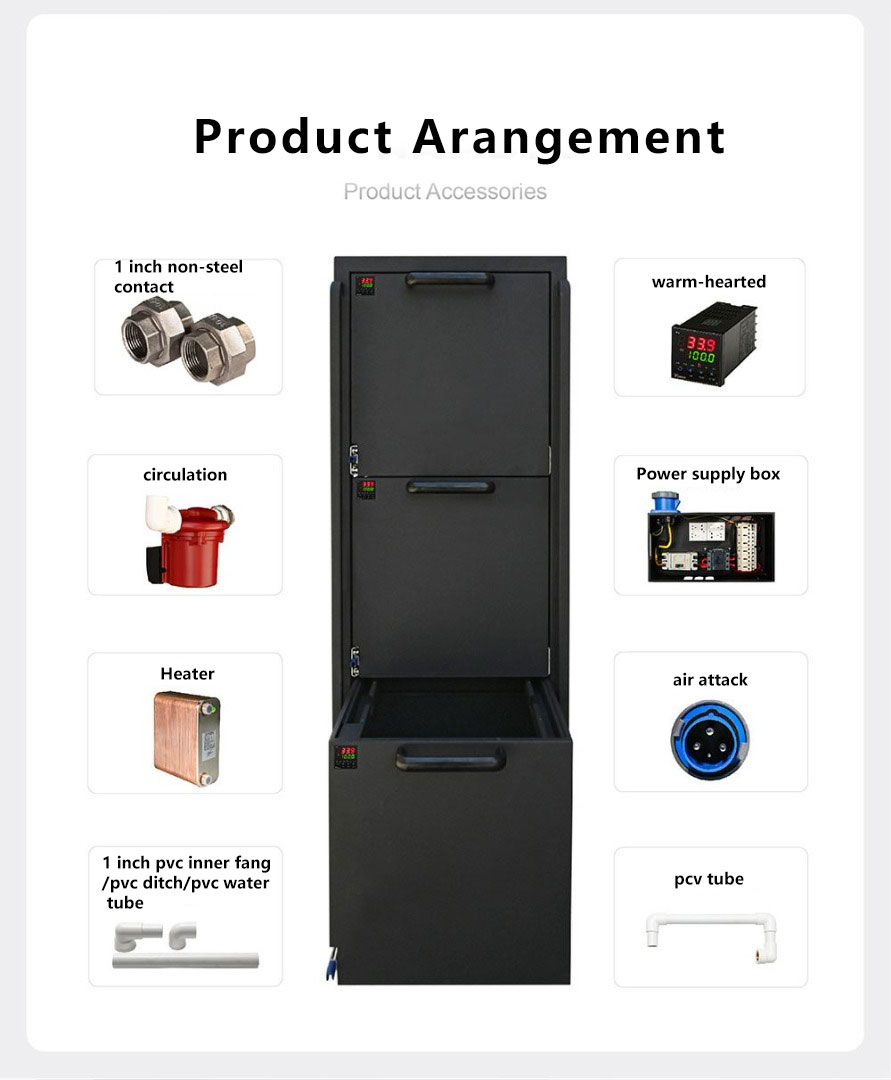

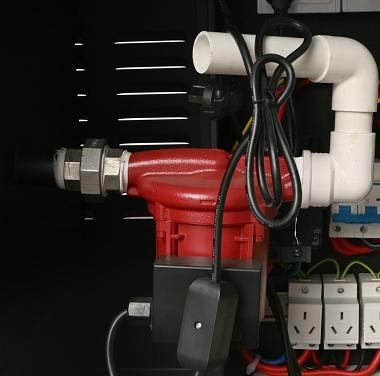

- Two-tier fuel tank; inner diameter of fuel tank: length 60CM*width 46CM*height 50CM; 4 S19 PROs can be placed; 2 floors can be placed 2 layers*4=8 S19 PRO single-layer fuel requirement 60CM*46CM*40CM ≈120 liters (reserve 40 liters) ≈160 liters of oil; 2 layers of oil demand 2 layers*120 liters≈240 liters (spare 40 liters*2 layers)≈320 liters of oil; immersion special oil: price 17 yuan / liter (acid value less than 0.005mg/g, boiling point> 109 ℃, Moisture <20mg/kg...) Four-layer oil pump*4: single weight 3.5KG; total weight 15KG; power 270W; voltage 220V; 1-inch pipe diameter; : single weight 3.5KG; total weight 10.5KG; power 270W; voltage 220V; 1-inch pipe diameter; flow rate 11m³/H; Voltage 220V;
1 inch pipe diameter; flow 11m³/H; 6 months warranty

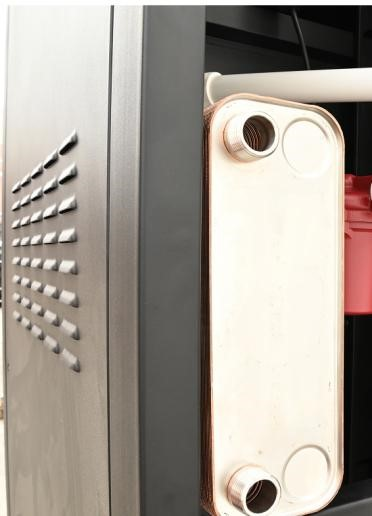

Four-layer heat exchanger*4: single weight 12KG; total weight 48KG; heat exchange 10KW; not participating in quality assurance Three-layer heat exchanger *3: single weight 12KG; total weight 36KG; heat exchange 10KW; Not participating in the warranty Two-layer heat exchanger*2: single weight 12KG; total weight 24KG; heat exchange 10KW; not participating in warranty

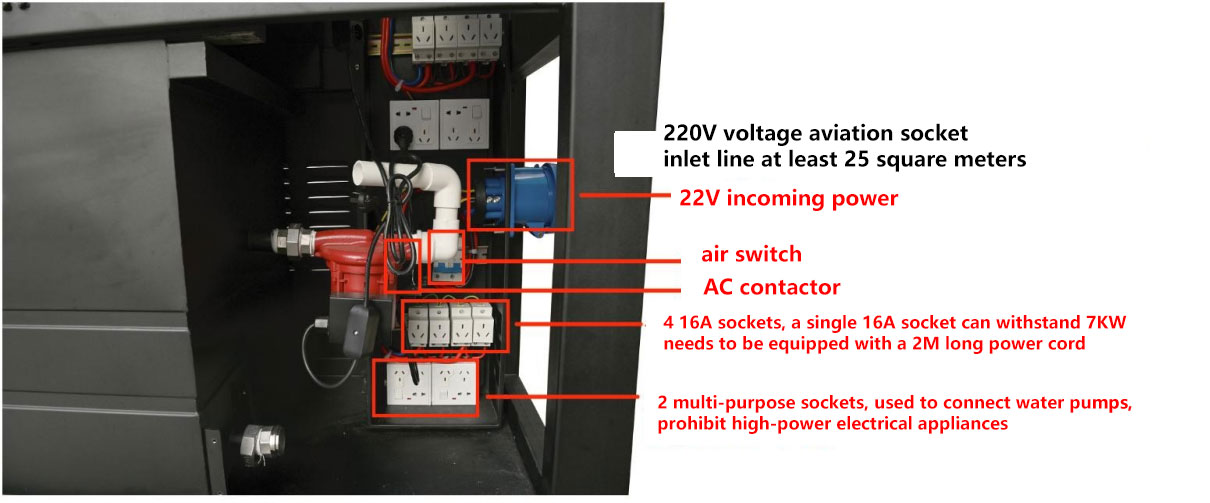

| Four-layer electric box*4 sets: total weight 28KG warranty | 4*(Configuration: 2 10A sockets (connected to the oil pump network device); 4 16A sockets (connected to the machine)) do not participate |
|---|---|
| Three-layer electric box*3 sets: total weight 21KG warranty | 3* (Configuration: 2 10A sockets (connected to oil pump network equipment); 4 16A sockets (connected to machine)) do not participate |
| Second-layer electric box*2 sets: total weight 14KG warranty | 2* (Configuration: 2 10A sockets (connected to the oil pump network device); 4 16A sockets (connected to the machine)) do not participate |

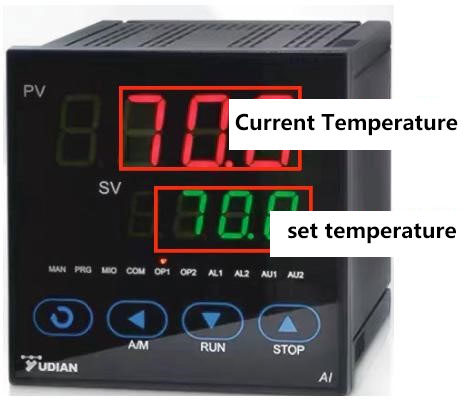

Four-layer temperature controller*4: It can display the current oil temperature. When the current oil temperature reaches the set temperature, the AC contactor intervenes to cut off the circuit. When the current oil temperature drops below the set temperature, the AC contactor restores the circuit. ;Warranty 6 months Three-layer temperature controller*3: It can display the current oil temperature. After the current oil temperature reaches the set temperature, the AC contactor intervenes to cut off the circuit. When the current oil temperature drops below the set temperature, the AC contactor Circuit recovery; 6-month warranty Two-layer thermostat*2: It can display the current oil temperature, when the current oil temperature reaches the set temperature, the AC contactor intervenes to cut off the circuit, and the current oil temperature decreases
To below the set temperature, the AC contactor restores the circuit; 6 months warranty
- Four-layer power: 4 units*7KW=28KW 4-layer=28KW*4-layer=112KW A water tower with a circulation volume of 0.23 tons* (4 layers * 28KW) ≈ 26 tons is required to exchange heat
- Three-layer power: 4 units*7KW=28KW 3-layer=28KW*3-layer=84KW A water tower with a circulation capacity of 0.23 tons* (3 layers*28KW) ≈ 20 tons is required to exchange heat

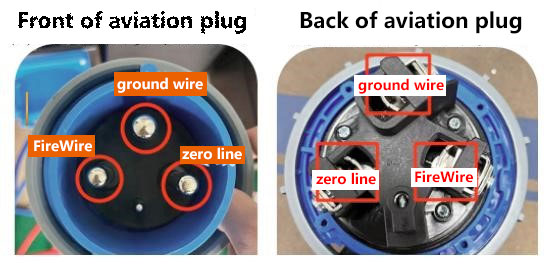

- Second floor power: 4 units*7KW=28KW 2 floors=28KW*2 floors=56KW A water tower with a circulation volume of 0.23 tons * (2 layers * 28KW) ≈ 15 tons is required for heat exchange and water consumption ≈ 0.3% * circulation volume Circulation amount = (0.23T/H)*power If you buy 5 sets of four-layer oil coolers, you need 5*112KW=560KW; 0.23*560KW≈130 tons of water towers to exchange heat, only need to buy heat exchange A water tower with a capacity of 130 tons is sufficient. Aviation plug wiring method
Remarks: Change the server air cooling to oil cooling, and then change it back to air cooling, you need to clean the server and replace it with new heat dissipation silicone grease, otherwise there is a risk of burning the machine! ! !
